Waveshare CAN FD Expansion HAT, 2-Channel Isolated, Compatible with Raspberry Pi

Marke: Waveshare
Modellname: 2-CH CAN FD HAT
Konnektivitätstechnologie: CAN
Enthaltene Komponenten: eine onboard 120Ω-Terminators resistor, ein Spannungswandler, Entwicklungsressourcen, Handbuch, Jumperkappen, und Kabel für die Verbindung mit dem CAN-BusMehr anzeigen
Betriebssystem: Raspberry Pi OS

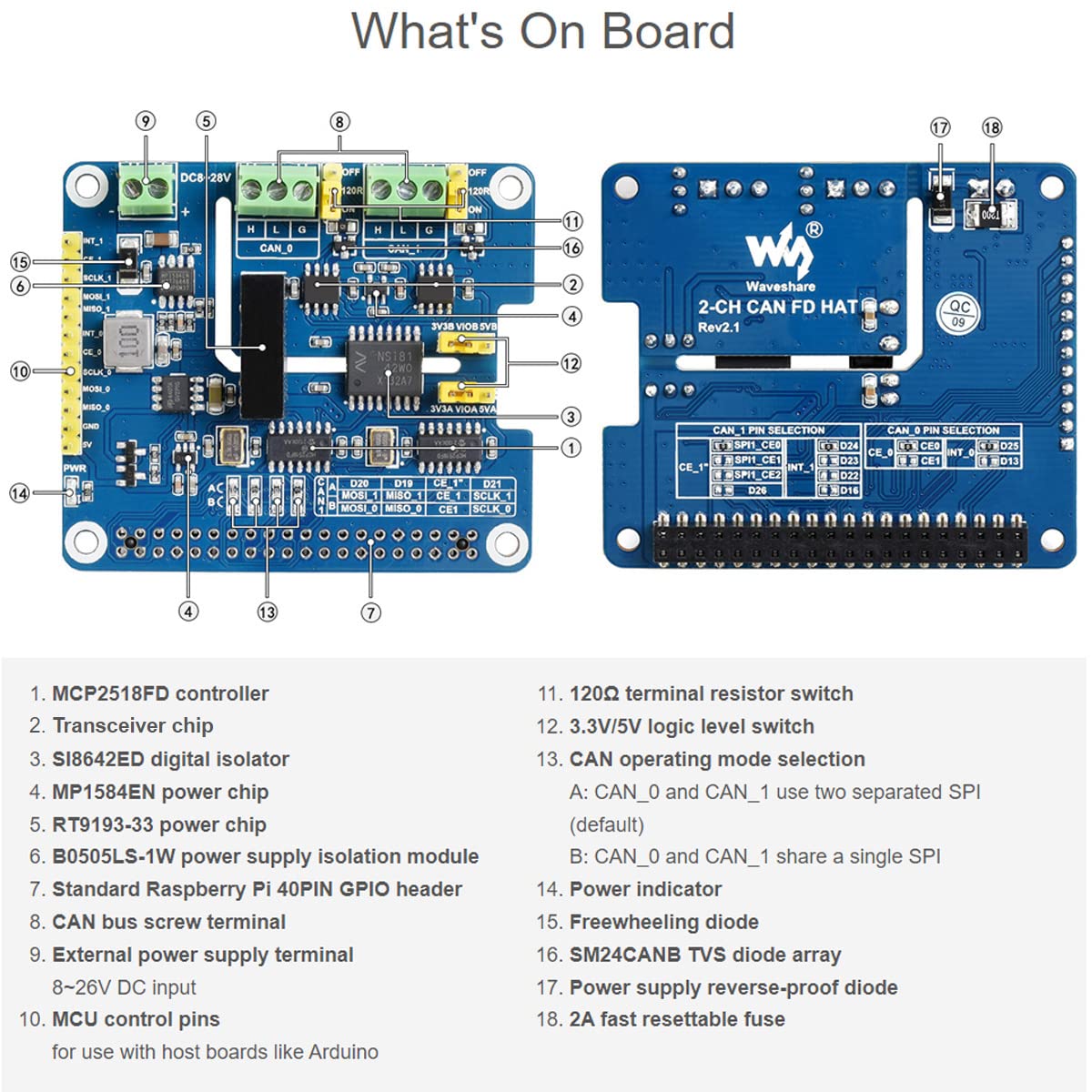

- 2-Channel Isolated CAN FD Expansion HAT For Raspberry Pi, CAN FD Support, Multi Onboard Protection Circuits
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Supports both traditional CAN2.0 and CAN FD protocols

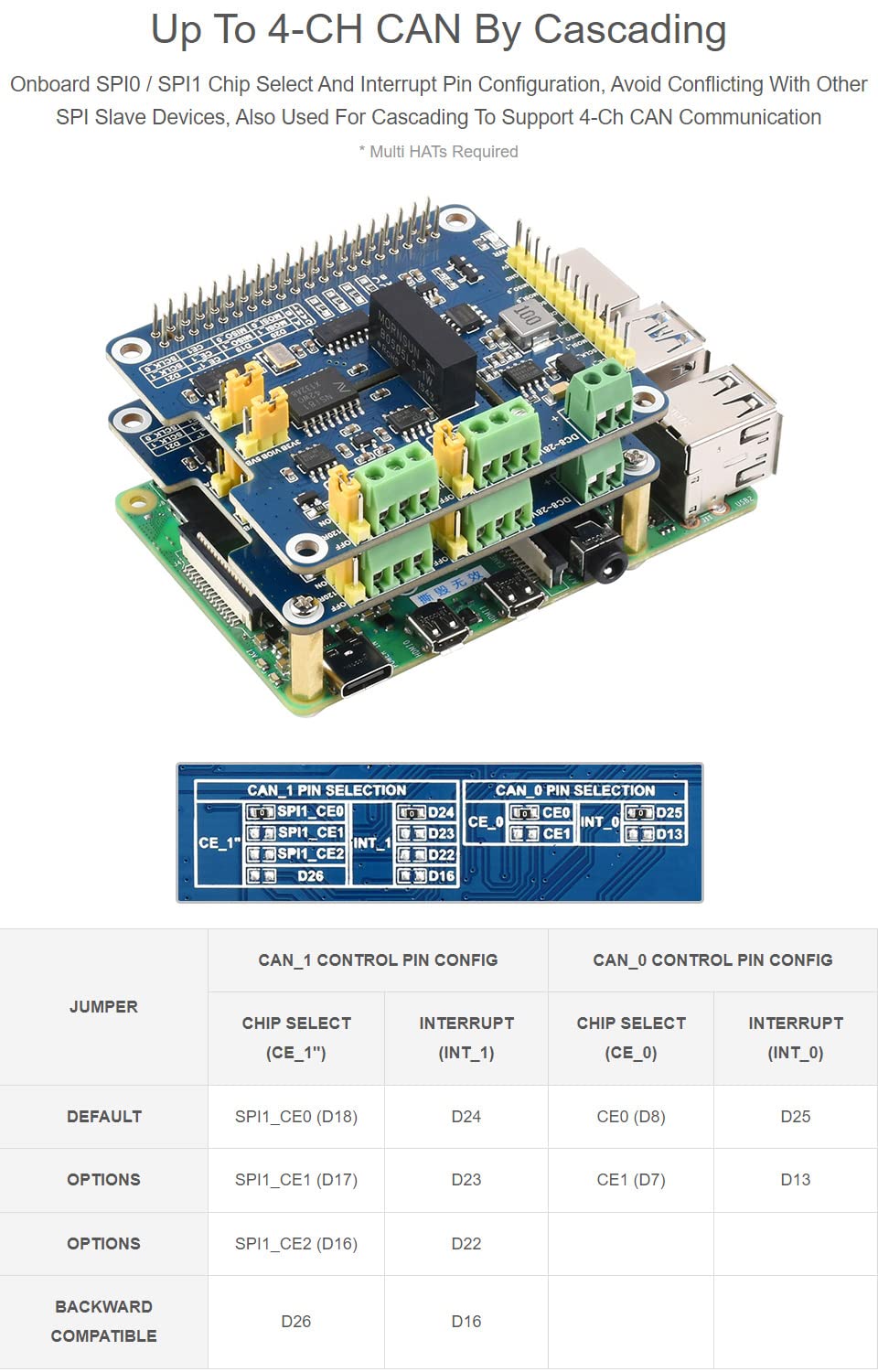

- Breakout SPI control pins, for connecting with host control boards like STM32/. Onboard electrical isolation, up to 5KV isolated voltage, stable operation, higher anti-interference capability
- Onboard lllghtningproof, ESD protection, short circuit protection, more safe communication
- Onboard voltage translator, select 3.3V/5V operating voltage by jumper. Onboard 120Ω terminal resistor, configured by jumper
