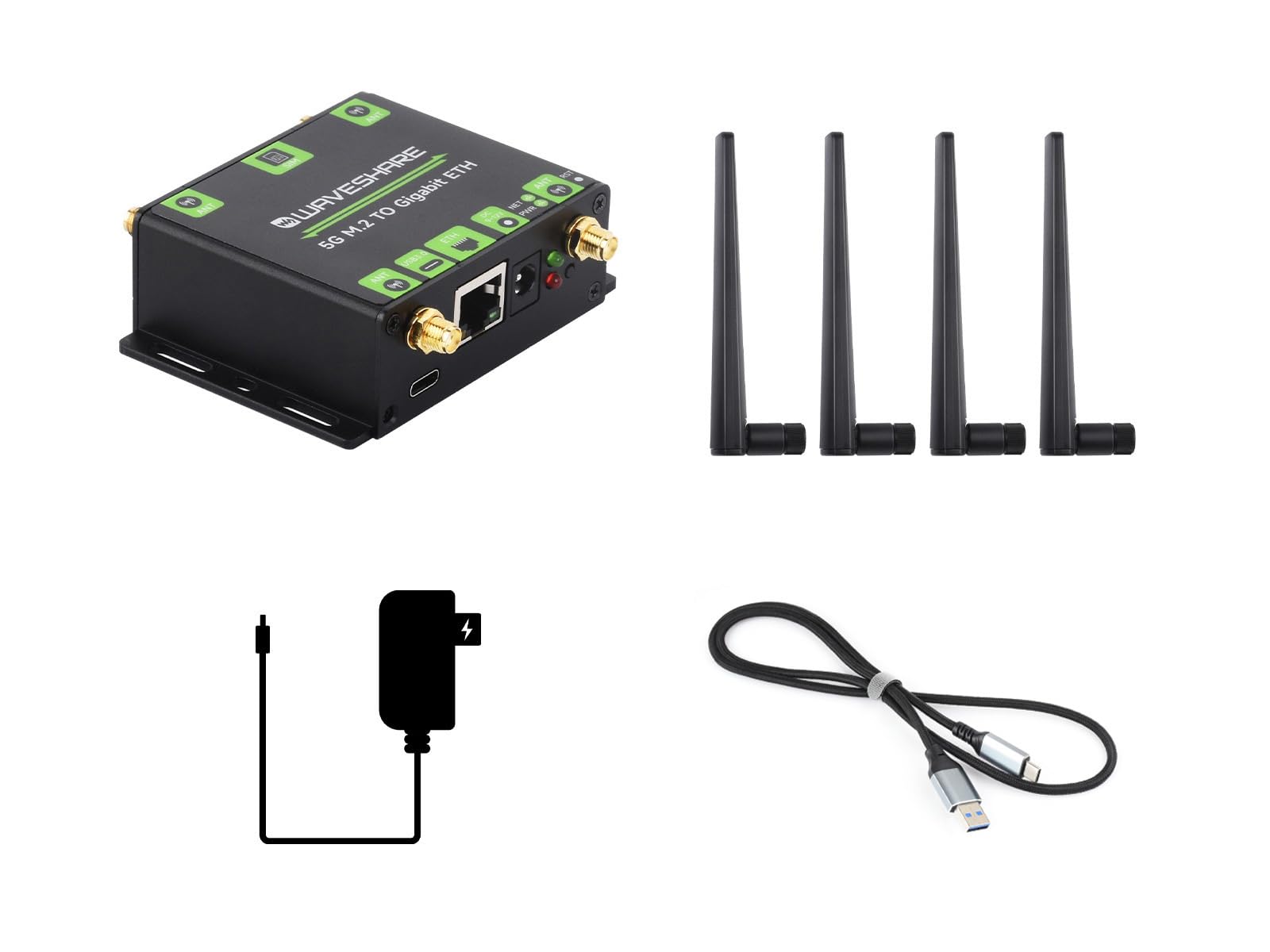

Waveshare 5G M.2 to Gigabit Ethernet Converter, 5G M.2 to USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas for Networked Medical Treatment, Smart Robots, Security Monitoring Networking

Marke: Waveshare
Hardwareschnittstelle: Ethernet, USB 3.1 Typ A
Kompatible Geräte: Persönliche PCs, Laptops, Einplatinencomputer (Raspberry Pi, Jetson-Serie)
Datenlink-Protokoll: Ethernet
Datenübertragungsrate: 1 Gigabit pro Sekunde
Anzahl der Einheiten: 1.0 stück
Kompatible Betriebssystem-Familie: Linux
Hersteller: Waveshare

- Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom. Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series
- Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port. Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging
- Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port. Onboard standard SIM card slot. Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging
- Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support

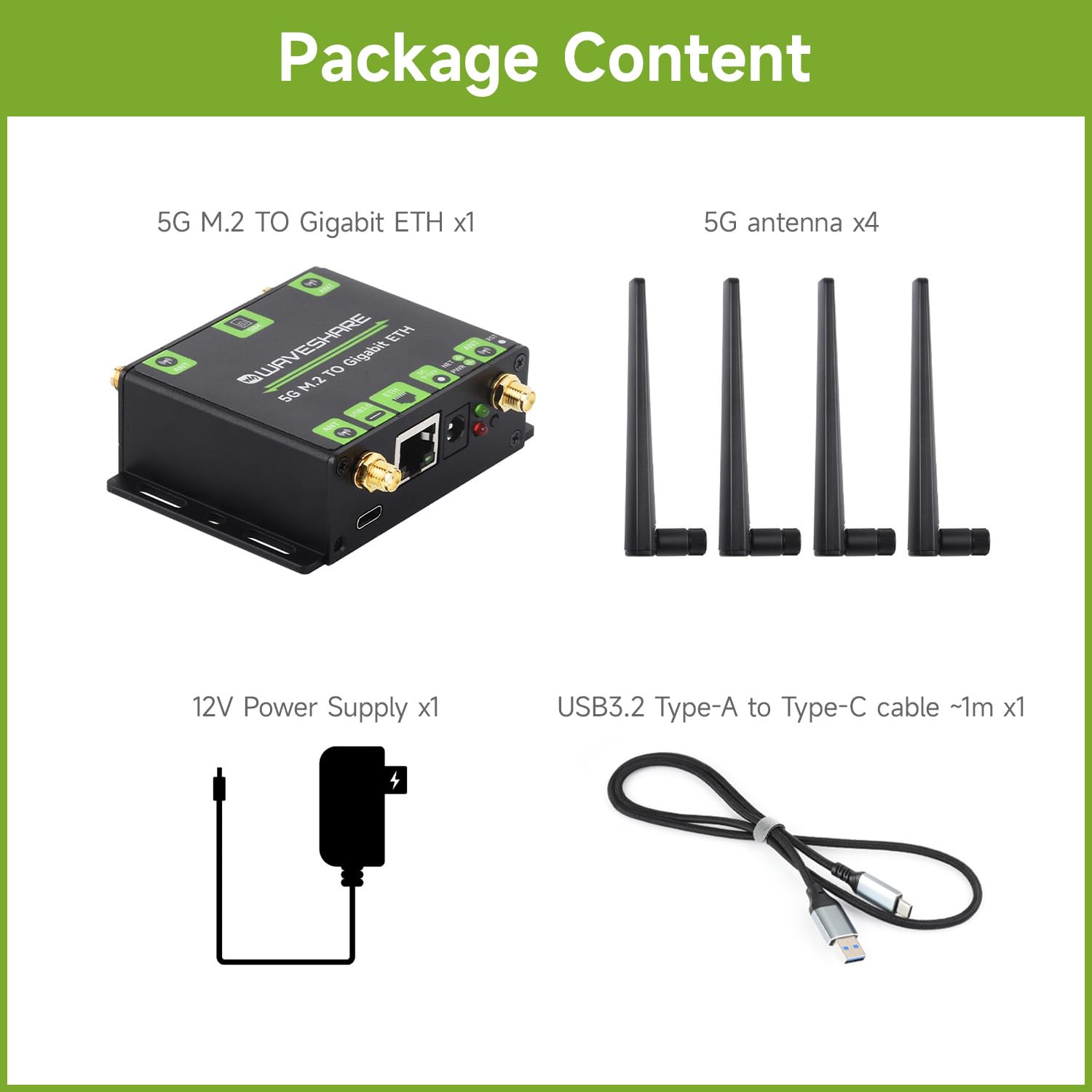

- Comes with 4 x 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module
